Story

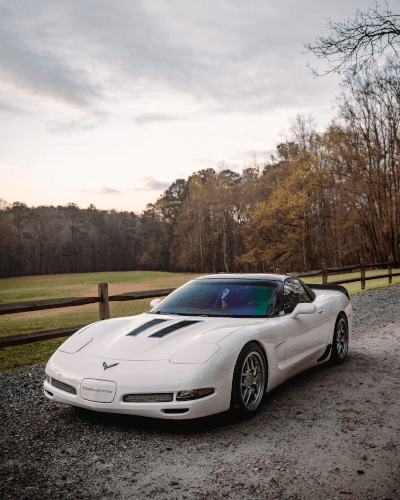

2001 Corvette Base
Speedway White (40U)
with light gray interior
Exterior:
·
Gloss black vinyl wrapped roof and halo
·
Custom-designed hood vents cut from aluminum by
SendCutSend.com and powdercoated by Millers Custom Powdercoating
·
KnightDriveTV “Sleepy Eye” headlights
·
“Ghost” Grand Sport stripes on left front fender
in satin white vinyl
·
C5 Race Edition spoiler in carbon fiber by C7
Carbon
·
Hydro-dipped in carbon fiber pattern 3-piece
rear diffuser
·

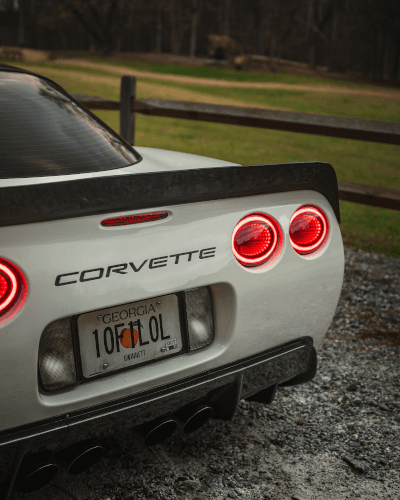

Infirai infinity taillights from VetteLights
·
Switchback front corner lights (amber when
flashing, white when driving)
·
“Laser” rear side markers
·
LED third brake light
·
LED reverse lights
·
Custom C7 badge from Kingpin Branding
·
OEM Z06 front grill inserts
·
OEM Z06 rear brake ducts with functional ducting
Wheels/Brakes/Suspension
·
C5 Z06 rear wheels with 295/35-18 tires on all
four corners (square setup)
·
C5 Z06 springs
·
C5 Z06 sway bars
·
DRM-valved Bilstein shocks from Doug Rippie
Motorsports
·
Moog sway bar end links
·
Front Brakes
o
Cadillac ATS 4-Piston Brembo calipers
o
C6 Z06 front rotors
·
Rear Brakes
o
Cadillac CTS-V2 4-Pison Brembo calipers
o
C6 Z51 rear rotor with 7mm spacer behind rotor
Engine:
·
243 casting heads (from LS6)
·
LS6 intake manifold (stock on 2001+ C5’s)
·
Summit Pro LS Stage 3 camshaft (231 intake / 242
Exhaust 113 LSA)
·
Trick Flow Track Max beehive valve springs
·
Summit Racing trunnion upgrade kit
·
NGK TR6 plugs with MSD wires and DEI plug wire
boots
·
Tuned by Vengeance Racing
·
Fidanza lightweight LS7 flywheel
·
Z06 6-speed transmission
·
GM LS7 clutch
·
Tick Performance slave cylinder
·
Tick Performance remote clutch bleed line
·
GM 3800 Supercharged fuel injectors
·
Summit crank pulley (pinned)
·
K&N Oval Air Filter RP-5135
·
Ron Davis racing radiator
·
25-row oil cooler with PCM of NC mounting
bracket
·
Oil catch can
·
Converted PCV system to LS6-style
·
Z06 red fuel rail covers
·
1-3/4 primary headers
·
3” Flowmaster high-flow catalytic converters
·
X-pipe
·
Corsa Xtreme exhaust with 4” tips
Interior
·
C5 Z06 gauge cluster
·
SSR pickup truck rearview mirror (homelink,
auto-dimming, & interior light)
·
C6 speaker grills in front corner of dash
·
C6 microphone housing next to rearview mirror
with Pioneer microphone installed inside
·
“Charge-rest” – Custom center console lid with a
magnetic charger. The cigarette lighter inside the console has been re-wired to
be powered by switched 12V instead of constant 12V to prevent battery drainage.
·
C6 steering wheel conversion with single-stage
airbag and functional steering wheel radio controls
·
Sport seat conversion (originally equipped with
“Euro” seats
·
C6 seatbelt conversion with red webbing from
Safety Restore
·
Arizona Speed and Marine harness bar
·
MGW shifter
·
C6 Centennial Edition Alcantara shift knob with
custom cap
·
Redline Goods Alcantara shift boot with red
stitching
·
Custom “blackout” American flag headliner
·
Window and windshield tint by Precision Window
Tinting
Stereo – The car now has 9 total speakers and
1400 watts of total power
·
Pioneer W3000NEX Head Unit with wireless Apple
CarPlay
·
Sony XMS400D 4-channel micro amplifier (inside
of dash)
·
Alpine S2 8” component speakers (sub in stock
location in door, tweeter custom-mounted in door handles)
·
Kicker DSC350 3.5” coaxial speakers in place of
stock twiddler
·
Infinity Kappa 20MX 2” midrange speakers in dash
behind the C6 tweeter grills
·
Infinity Reference 6532IX 6.5” coaxial speakers
in the stock rear location
·
Rockville SS10P 10” powered subwoofer mounted on
back trunk wall
·
All amps are wired directly to the battery with
heavy-gauge wire and grounded with dedicated grounding wires to factory ground
points.
·
All speakers have been wired directly to their
respective amplifiers. No parts of the factory Bose system remain in the car.
